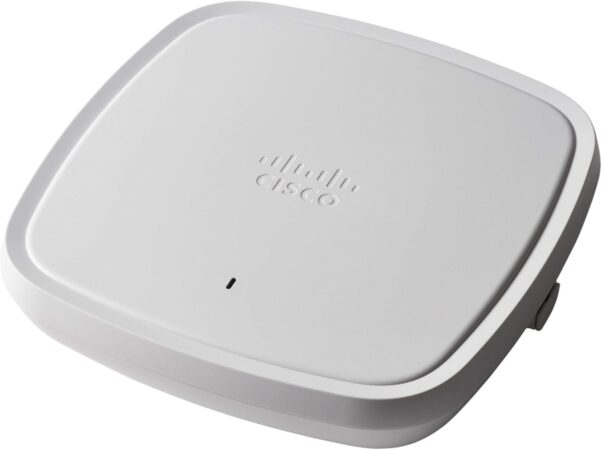

C9120AXI-S Cisco Catalyst 9120 Series Access point Indoor with internal antennas

–  Cisco Unified Wireless Network Software Release 8.9.x or later

–  Cisco IOS ^® XE Software Release 16.11 with AP Device Pack, or later

–  Cisco Catalyst 9800 Series Wireless Controllers

–  Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller

–  4×4 MIMO with four spatial streams

–  Maximal Ratio Combining (MRC)

–  802.11n and 802.11a/g beamforming

–  20- and 40-MHz channels

–  PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)

–  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

–  802.11 Dynamic Frequency Selection (DFS)

–  Cyclic Shift Diversity (CSD) support

–  4×4 downlink MU-MIMO with four spatial streams

–  MRC

–  802.11ac beamforming

–  20-, 40-, 80-, and 160-MHz channels

–  PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)

–  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

–  802.11 DFS

–  CSD support

–  4×4 downlink MU-MIMO with four spatial streams

–  Uplink/downlink OFDMA

–  TWT

–  BSS coloring

–  MRC

–  802.11ax beamforming

–  20-, 40-, 80-, and 160-MHz channels

–  PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)

–  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

–  802.11 DFS

–  CSD support

–  2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

–  5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth

–  5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

–  Cisco Catalyst 9120E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

–  Cisco Catalyst 9120P Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antenna

–  Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

–  Supports Self-Identifiable Antennas (SIA) on one RP-TNC port

–  Available on the 9120E and on the 9120P only

–  Compact multi RF connector with DART interface

–  Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connector

–  Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio

–  1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

–  Management console port (RJ-45)

–  USB 2.0 @ 3.75W (enabled via future software)

–  Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

 8.5 x 8.5 x 1.7” (21.6 x 21.6 x 4.3 cm)

2.87 lbs (1.3 kg)

802.3at (PoE+)
