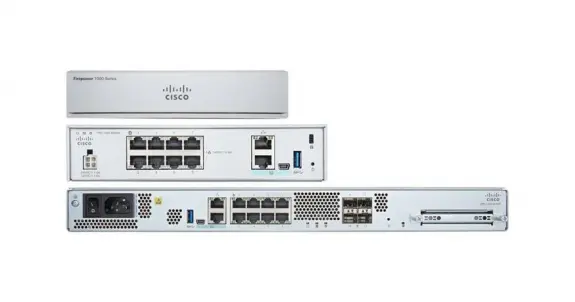

Thông tin sản phẩm FPR1010-NGFW-K9 Cisco Firewall 1000 Series with Firepower Service
| Features | 1010 |
| Throughput: Firewall (FW) + Application Visibility and Control (AVC) (1024B) | 650 Mbps |
| Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B) | 650 Mbps |
| Throughput: FW + AVC (450B) | 225 Mbps |
| Throughput: FW + AVC + IPS (450B) | 225 Mbps |
| Maximum concurrent sessions, with AVC | 100K |
| Maximum new connections per second, with AVC | 6K |
| Transport Layer Security (TLS) | 150 Mbps |
| Throughput: NGIPS (1024B) | 650 Mbps |
| Throughput: NGIPS (450B) | 225 Mbps |
| IPSec VPN throughput (1024B TCP w/Fastpath) | 300 Mbps |
| Cisco Firepower Device Manager (local management) | Yes |
| Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by the Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
| AVC | Standard, supporting more than 4000 applications, as well as geolocations, users, and websites |
| AVC: OpenAppID support for custom, open-source application detectors | Standard |
| Cisco Security Intelligence | Standard, with IP, URL, and DNS threat intelligence |
| Cisco Firepower NGIPS | Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence |
| Cisco Advanced Malware Protection (AMP) for Networks | Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco AMP for Endpoints is also optionally available. |
| Cisco AMP Threat Grid sandboxing | Available |
| URL filtering: number of categories | More than 80 |
| URL filtering: number of URLs categorized | More than 280 million |
| Automated threat feed and IPS signature updates | Yes: class-leading Collective Security Intelligence (CSI) from the Cisco Talos® group (https://www.cisco.com/c/en/us/products/security/talos.html) |
| Third-party and open-source ecosystem | Open API for integrations with third-party products; Snort® and OpenAppID community resources for new and specific threats |
| High availability and clustering | Active/standby |
| Cisco Trust Anchor Technologies | Cisco Firepower 1000 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details. |
| Hardware specifications | |
| Dimensions (H x W x D) | 1.82 x 7.85 x 8.07 in |
| Form factor (rack units) | Desktop |
| Integrated I/O | 8 x RJ-45 |
| Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
| Serial port | 1 x RJ-45 console |
| USB | 1 x USB 3.0 Type-A (500mA) |
| Storage | 1 x 200 GB |
| Power supply configuration | +12V and -53.5V |
| AC input voltage | 100 to 240V AC |
| AC maximum input current | < 2A at 100V, < 1A at 240V |
| AC maximum output power | 115W (55W of +12V and 60W of -53.5V) |
| AC frequency | 50 to 60 Hz |
| AC efficiency | >88% at 50% load |
| Redundancy | None |
| Fans | None |
| Noise | 0 dBA |
| Rack mountable | Yes. Separate kit must be ordered |
| Weight | 3 lb (1.36 kg) |
| Temperature: operating | 32 to 104°F (0 to 40°C) |
| Temperature: nonoperating | -13 to 158°F (-25 to 70°C) |
| Humidity: operating | 90% noncondensing |
| Humidity: nonoperating | 10 to 90% noncondensing |
| Altitude: operating |
9843 ft (max) 3000 m (max) |
| Altitude: nonoperating | 15,000 ft (max) |
| Regulatory compliance | Products comply with CE markings per directives 2004/108/EC and 2006/108/EC |
| Safety |
– UL 60950-1
– CAN/CSA-C22.2 No. 60950-1
– EN 60950-1
– IEC 60950-1
– AS/NZS 60950-1
– GB4943
|
| EMC: emissions |
– 47CFR Part 15 (CFR 47) Class A (FCC Class A)
– AS/NZS CISPR22 Class A
– CISPR22 CLASS A
– EN55022 Class A
– ICES003 Class A
– VCCI Class A
– EN61000-3-2
– EN61000-3-3
– KN22 Class A
– CNS13438 Class A
– EN300386
– TCVN7189
|
| EMC: immunity |
– EN55024
– CISPR24
– EN300386
– KN24
– TVCN 7317
– EN-61000-4-2, EN-61000-4-3, EN-61000-4-4, EN-61000-4-5, EN-61000-4-6, EN-61000-4-8, EN61000-4-11
|
