| Feature | Specification | |
| Memory (default and maximum) | DRAM: 4 GB
Flash: 4 GB |
|
| Console | – Micro USB console (USB 3.0). | |
| Mini-USB port (reserved) | – Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0). | |
| WLAN interfaces | – Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU‑MIMO).
– 802.11ac Wave 2 with 2×2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points. – Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1100 Series to be deployed on networks without a physical controller. – For more information, view theCisco Aironet 1815i Access Point Data Sheet. |
|
| Maximum clients | – Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per access point.
– Flexible deployment through theMobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1815i to be deployed on networks without a physical controller. |
|
| Authentication and security | – AES for Wi-Fi Protected Access 2 (WPA2).
– 802.1X, RADIUS AAA. – 802.11r. – 802.11i. |
|
| 802.11ac | – 2×2 SU-MIMO/MU-MIMO with two spatial streams.
– Maximal Ratio Combining (MRC). – 20-, 40-, and 80-MHz channels. – PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz). – Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx). – 802.11 Dynamic Frequency Selection (DFS). – Cyclic Shift Diversity (CSD) support. |
|
| Software | – Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 MR1 or later. | |
| DSL interfaces | – Dying gasp.
– ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a. – VDSL2 Vectoring. – ADSL Annex A and Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+). – ADSL Annex M G.992.3 (ADSL2) and G.992.5 (ADSL2+). |
|
| Inline PoE | – Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af-compliant PoE or 802.3at-compliant PoE+. | |
| External power supply | Product power specifications:
– AC input voltage: Universal 100 to 240 VAC. – Frequency: 50 to 60 Hz. – Maximum output power: 66W (default). – Output voltages: 12 VDC. – Optional PoE and PoE+: ◦ Single 125W power supply required for Cisco 1100-8P router ◦ Single 115W power supply required for Cisco 1100-4P router – External output voltage: 48 VDC. |
|
| USB 3.0 | – USB devices supported:
◦ USB eTokens ◦ USB flash memory – Note: Devices USB 3.0 supports to be connected externally. View the |
|
| LEDs | – WWAN (green/amber).
– SIM status (green/amber). – Received Signal Strength Indication (RSSI) bar (green). – 3G/LTE service (green/amber). – GPS (green/amber). – Speed and link for Gigabit Ethernet WAN port (green). – Speed and link for all Fast Ethernet LAN ports (green). |
|
| Physical dimensions
(H x W x D) |
– 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models).
– 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models). |
|
| Weight | – 5.7 lb (2.59 kg). | |
| Standard safety certifications | – UL 60950-1, 2nd edition.
– CAN/CSA C22.2 No. 60950-1, 2nd edition. – EN 60950-1, 2nd edition. – CB to IEC 60950-1, 2nd edition with all group differences and national deviations. |
|
| EMC emissions | – EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1. | |
| EMC immunity | – EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300-386. | |
| Radio immunity | – EN301 489-1, EN 301 489-7, and EN301 489-24. | |
| Cellular radio | – EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13. | |
| Environmental operating range | – Nonoperating temperature: -4° to 149°F (-0° to 65°C).
– Nonoperating humidity: 5% to 95% relative humidity (noncondensing). – Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m). – Operating temperature: 32° to 104°F (0° to 40°C). – Operating humidity: 10% to 85% relative humidity (noncondensing). – Operating altitude: 0 to 10,000 ft (0 to 3000 m). |
|

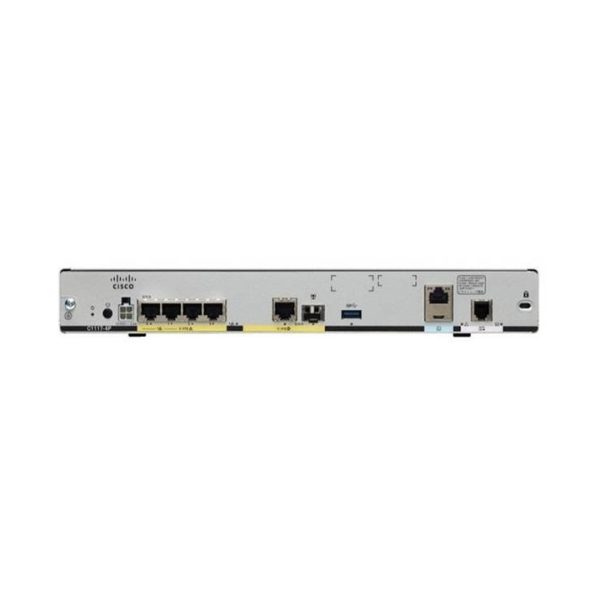

Thông tin sản phẩm Cisco ISR C1111-4P 4-Port Dual GE WAN Ethernet Router
